Product number:
BFCN 2003 6100

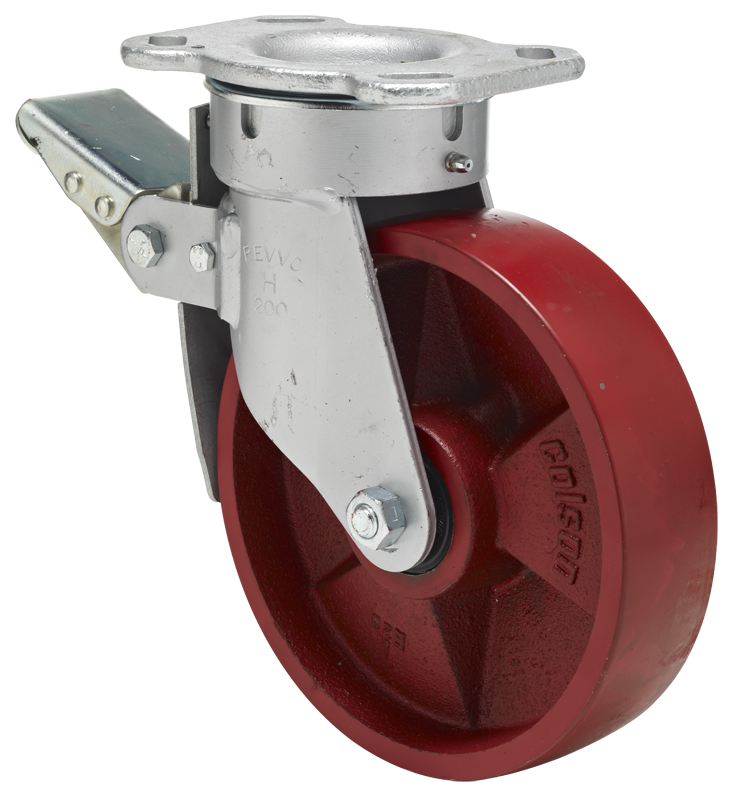

Swivel castor with total brake mounted in front
Technical Specifications
- Load Capacity (kg)
- 1150 kg
- Diameter (mm)
- 200 mm
- Height (mm)
- 252 mm
- Weight (g)
- 7.3 kg
- Topplate Bolt Diameter
- 10.5 mm
- Topplate (mm)
- 150 x 110 mm
- Topplate Bolt Distance (mm)
- 105 x 75,80 mm
- Axle Diameter
- 12 mm
- Hub length
- 62 mm
- Wheel Width
- 45 mm
- Offset
- 66 mm
- Brake Swivel Radius
- 160 mm
- Heavy duty welded steel swivel fork
- 'Swivel bearing with hardened raceway, grease nippel and sealring with brake
- Cast iron wheel
- With two deep groove ball bearings
