Product number:
BXPN 1001 1100

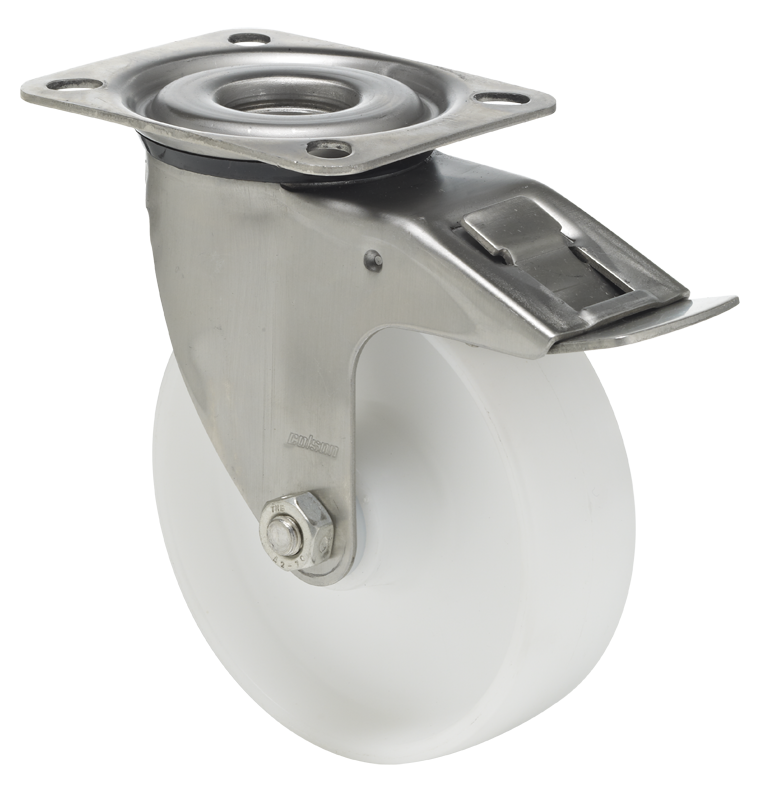

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 150 kg
- Diameter (mm)
- 100 mm
- Height (mm)
- 127 mm
- Weight (g)
- 0.9 kg
- Topplate Bolt Diameter
- 9 mm
- Topplate (mm)
- 105 x 80 mm
- Topplate Bolt Distance (mm)
- 80 x 60 mm
- Axle Diameter
- 12 mm
- Hub length
- 40 mm
- Wheel Width
- 35 mm
- Offset
- 33 mm
- Brake Swivel Radius
- 135 mm
- Swivel fork of deep drawn stainless steel
- Swivel bearing with double ball race and sealring with brake
- Polyamide wheel
- With plain bearing and stainless steel hollow axle
