Product number:
BTPF 1603 6443

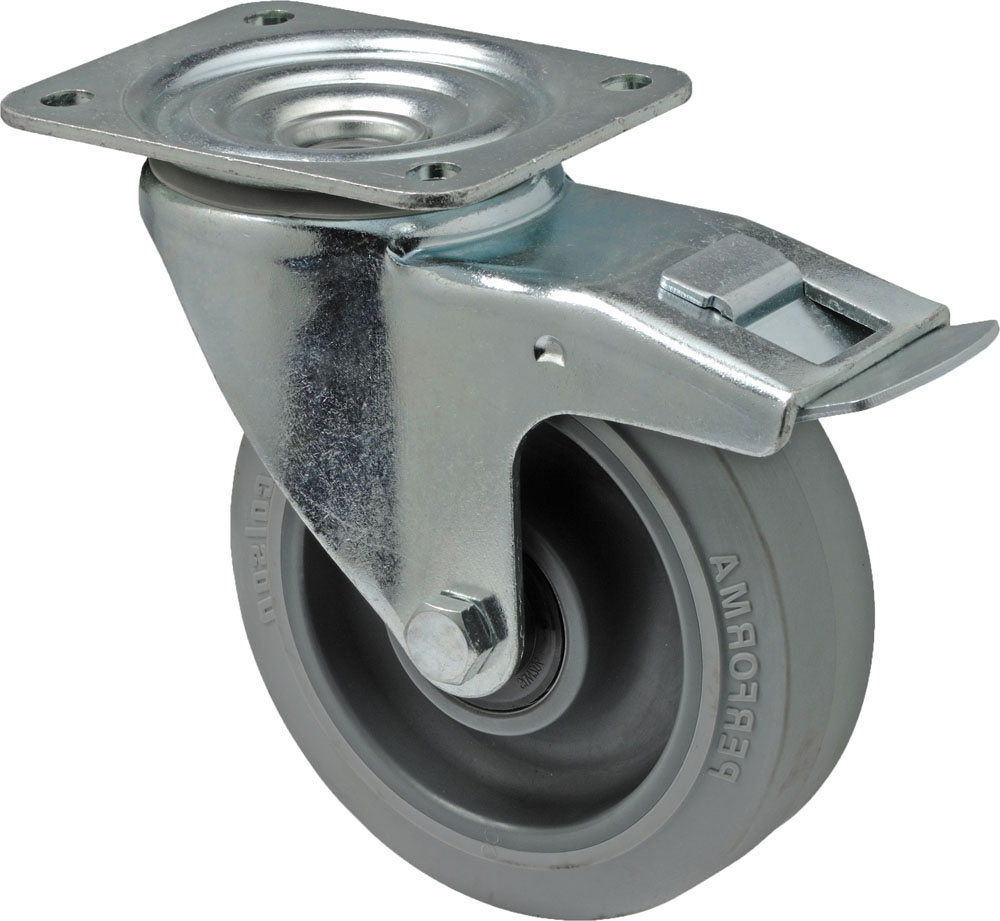

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 250 kg
- Diameter (mm)
- 160 mm
- Height (mm)
- 193 mm
- Weight (g)
- 2.82 kg
- Topplate Bolt Diameter
- 11 mm
- Topplate (mm)
- 135 x 110 mm
- Topplate Bolt Distance (mm)
- 105 x 75/80 mm
- Hub length
- 64 mm
- Wheel Width
- 50 mm
- Offset
- 53 mm
- Brake Swivel Radius
- 162 mm
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race and sealring with brake
- Dark grey polypropylene wheel with grey rubber (Performa) tyre
- 65° Shore A
- With two deep groove ball bearings 6204
