Product number:
BTPF 1002 5100

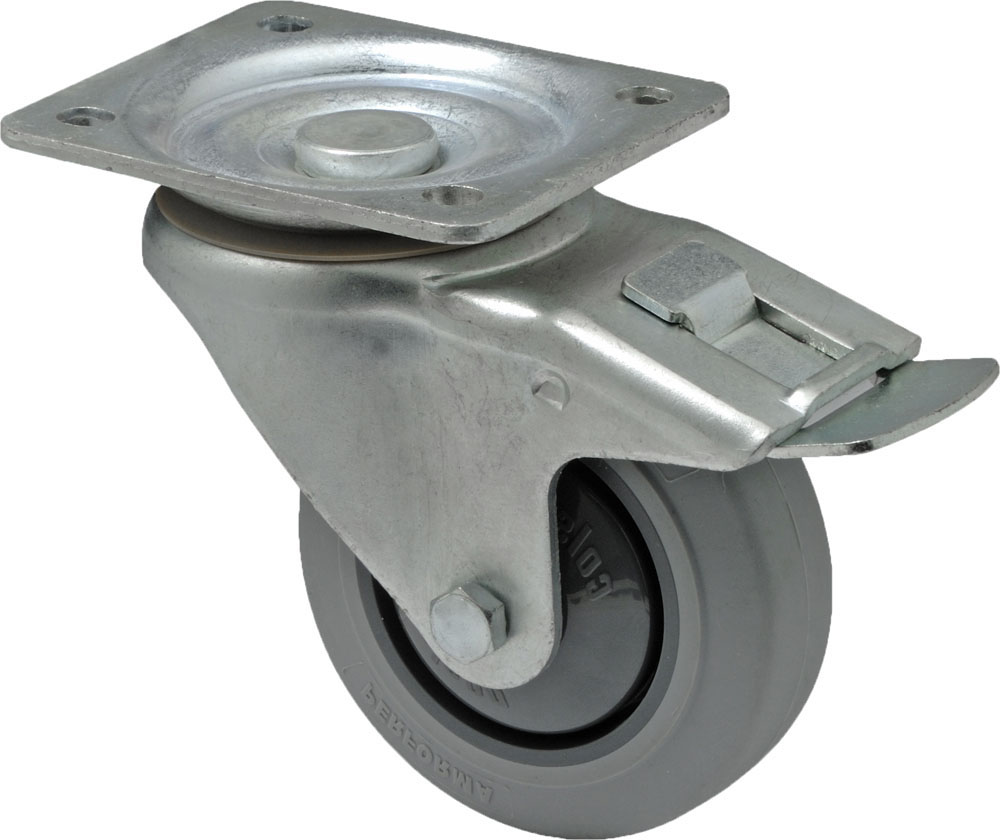

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 150 kg
- Diameter (mm)
- 100 mm
- Height (mm)
- 130 mm
- Weight (g)
- 1.205 kg
- Topplate Bolt Diameter
- 9 mm
- Topplate (mm)
- 105 x 86 mm
- Topplate Bolt Distance (mm)
- 80/77 x 60 mm
- Hub length
- 50 mm
- Wheel Width
- 32 mm
- Offset
- 40 mm
- Brake Swivel Radius
- 117 mm
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race and sealring with brake
- Dark grey polypropylene wheel with grey rubber (Performa) tyre
- 65° Shore A
- With one sealed deep groove ball bearing
