Product number:
BPSM 2003 2100

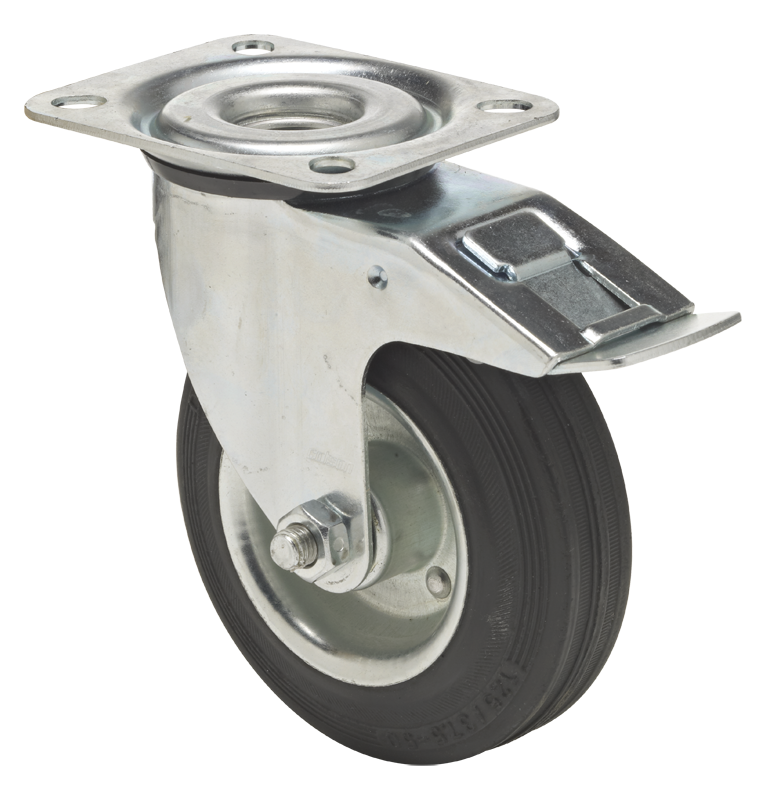

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 200 kg
- Diameter (mm)
- 200 mm
- Height (mm)
- 235 mm
- Weight (g)
- 3.9 kg
- Topplate Bolt Diameter
- 11 mm
- Topplate (mm)
- 135 x 110 mm
- Topplate Bolt Distance (mm)
- 105 x 75,80 mm
- Axle Diameter
- 20 mm
- Hub length
- 60 mm
- Wheel Width
- 50 mm
- Offset
- 53 mm
- Brake Swivel Radius
- 178 mm
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race and sealring with brake
- Pressed sheetsteel wheel with black rubber tyre
- 85° Shore A
- With roller bearing
