Product number:
BPSG 1603 2100

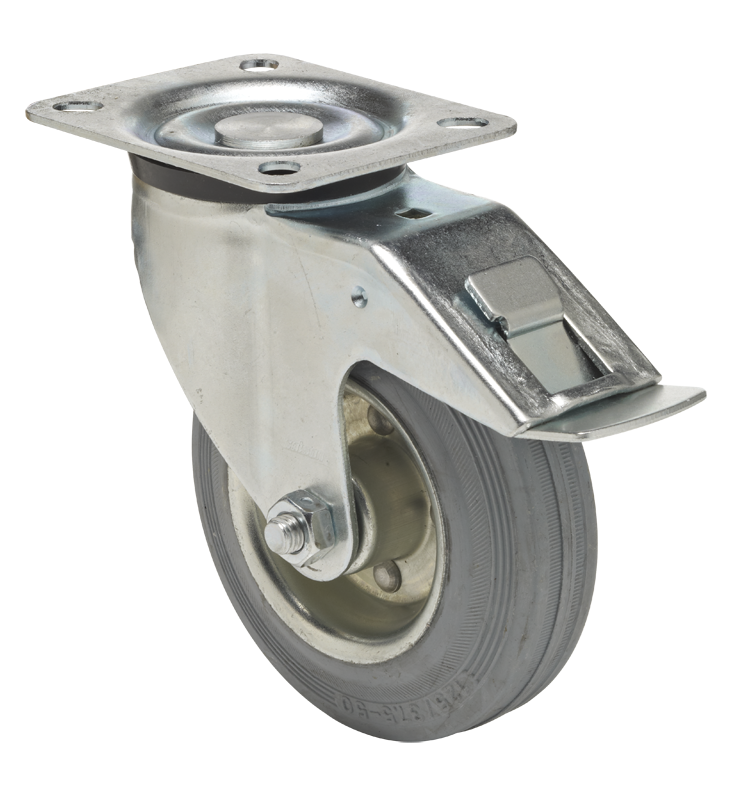

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 160 kg
- Diameter (mm)
- 160 mm
- Height (mm)
- 195 mm
- Weight (g)
- 3 kg
- Topplate Bolt Diameter
- 11 mm
- Topplate (mm)
- 135 x 110 mm
- Topplate Bolt Distance (mm)
- 105 x 75,80 mm
- Axle Diameter
- 20 mm
- Hub length
- 60 mm
- Wheel Width
- 40 mm
- Offset
- 53 mm
- Brake Swivel Radius
- 178 mm
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race and sealring with brake
- Pressed sheetsteel wheel with grey rubber tyre
- 85° Shore A
- With roller bearing
