Product number:
BPPR 1005 5000

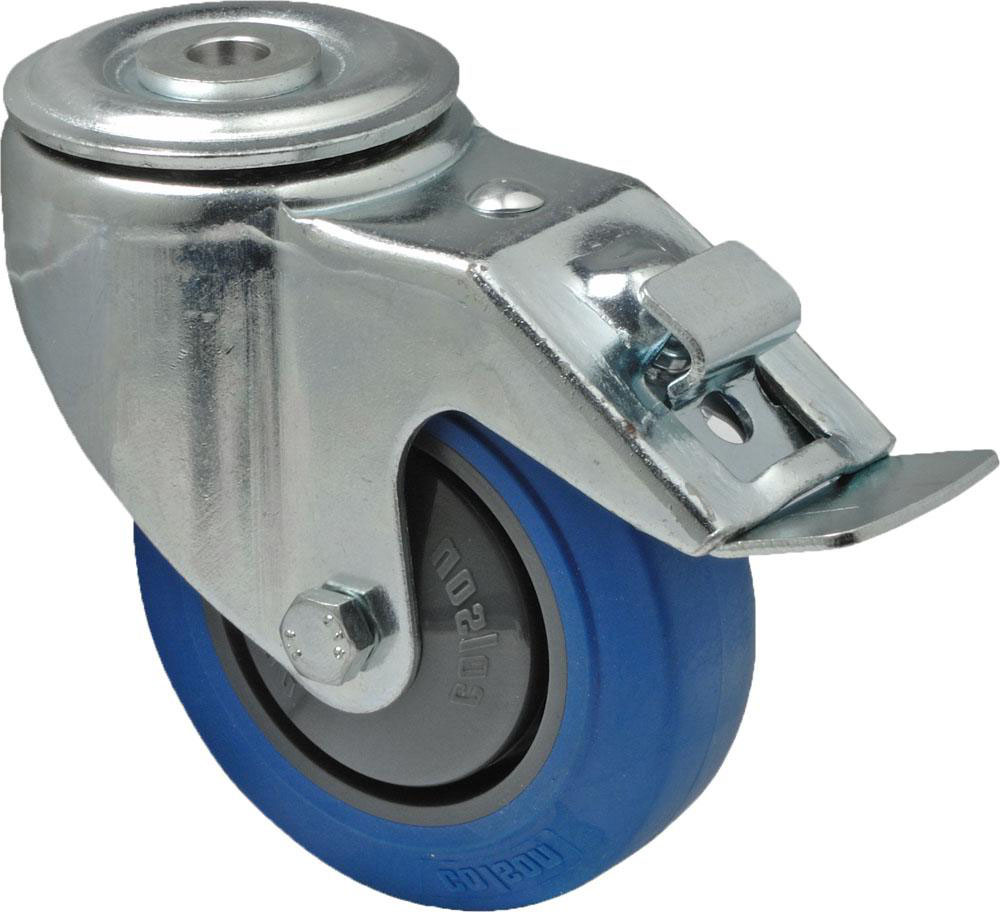

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 150 kg
- Diameter (mm)
- 100 mm
- Height (mm)
- 128 mm
- Weight (g)
- 1 kg
- Axle Diameter
- 8 mm
- Hub length
- 42 mm
- Wheel Width
- 32 mm
- Offset
- 34 mm
- Brake Swivel Radius
- 128 mm
- Bolthole Diameter
- 12.3 mm
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race with brake
- Dark grey polypropylene wheel with blue elastic Performa tyre
- 65° Shore A
- With one sealed deep groove ball bearing
