Product number:
BPPN 1251 5100

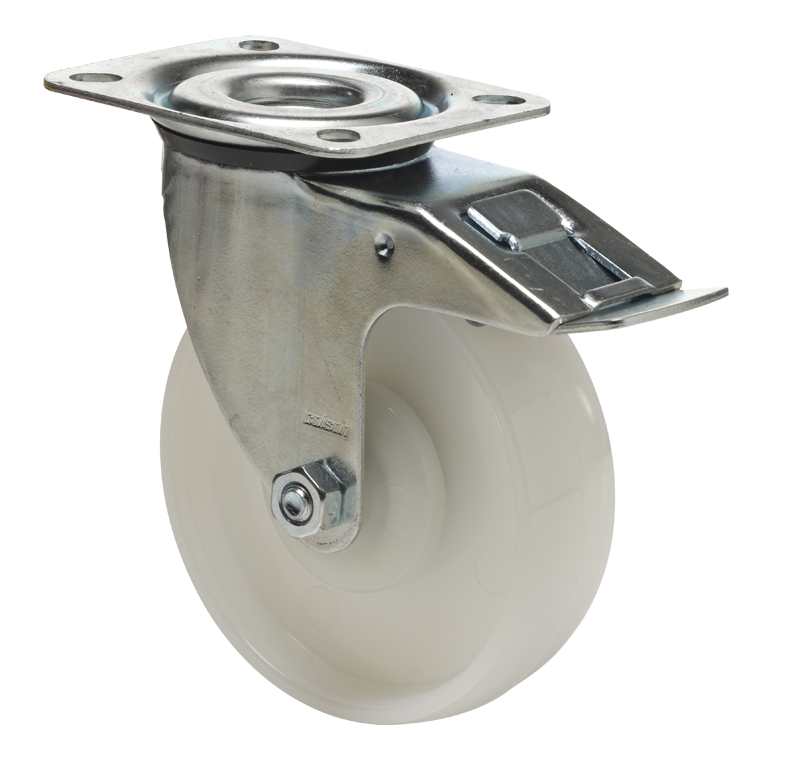

Swivel castor with total brake mounted behind
Technical Specifications
- Load Capacity (kg)
- 200 kg
- Diameter (mm)
- 125 mm
- Height (mm)
- 156 mm
- Weight (g)
- 1.3 kg
- Topplate Bolt Diameter
- 9.6 mm
- Topplate (mm)
- 105 x 85 mm
- Topplate Bolt Distance (mm)
- 80 x 60 mm
- Axle Diameter
- 10 mm
- Hub length
- 48 mm
- Wheel Width
- 35 mm
- Offset
- 41 mm
- Brake Swivel Radius
- 138 mm
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race and sealring with brake
- Polyamide wheel
- With one sealed deep groove ball bearing
