Product number:
FPSG 0801 2000

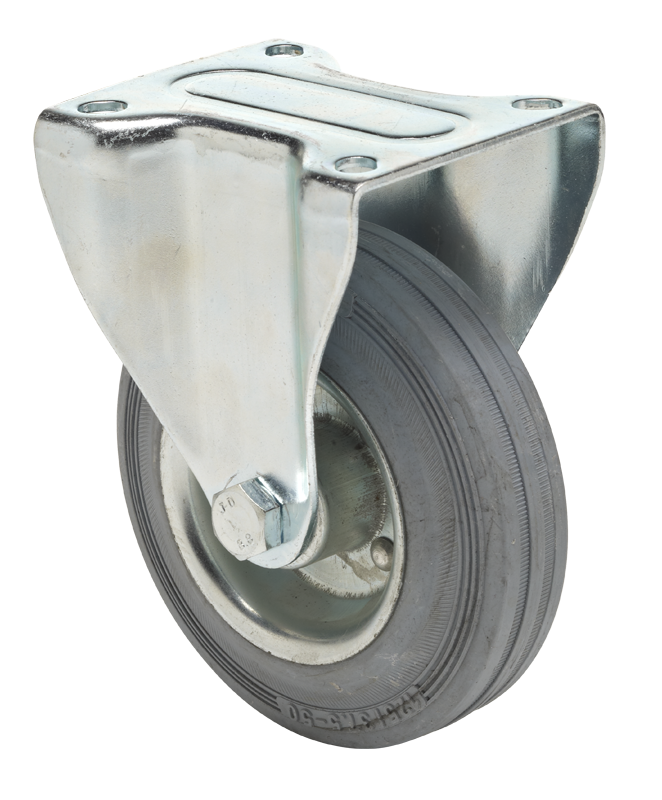

Fixed castor
Technical Specifications
- Load Capacity (kg)
- 50 kg
- Diameter (mm)
- 80 mm
- Height (mm)
- 105 mm
- Weight (g)
- 0.5 kg
- Topplate Bolt Diameter
- 9.6 mm
- Topplate (mm)
- 105 x 85 mm
- Topplate Bolt Distance (mm)
- 80 x 60 mm
- Axle Diameter
- 12 mm
- Hub length
- 40 mm
- Wheel Width
- 25 mm
- Offset
- 38 mm
- Brake Swivel Radius
- 108 mm
Rigid fork of zinc-coated sheet steel
- Pressed sheetsteel wheel with grey rubber tyre
- 85° Shore A
- With roller bearing
