Product number:
FPPR 1001 5000

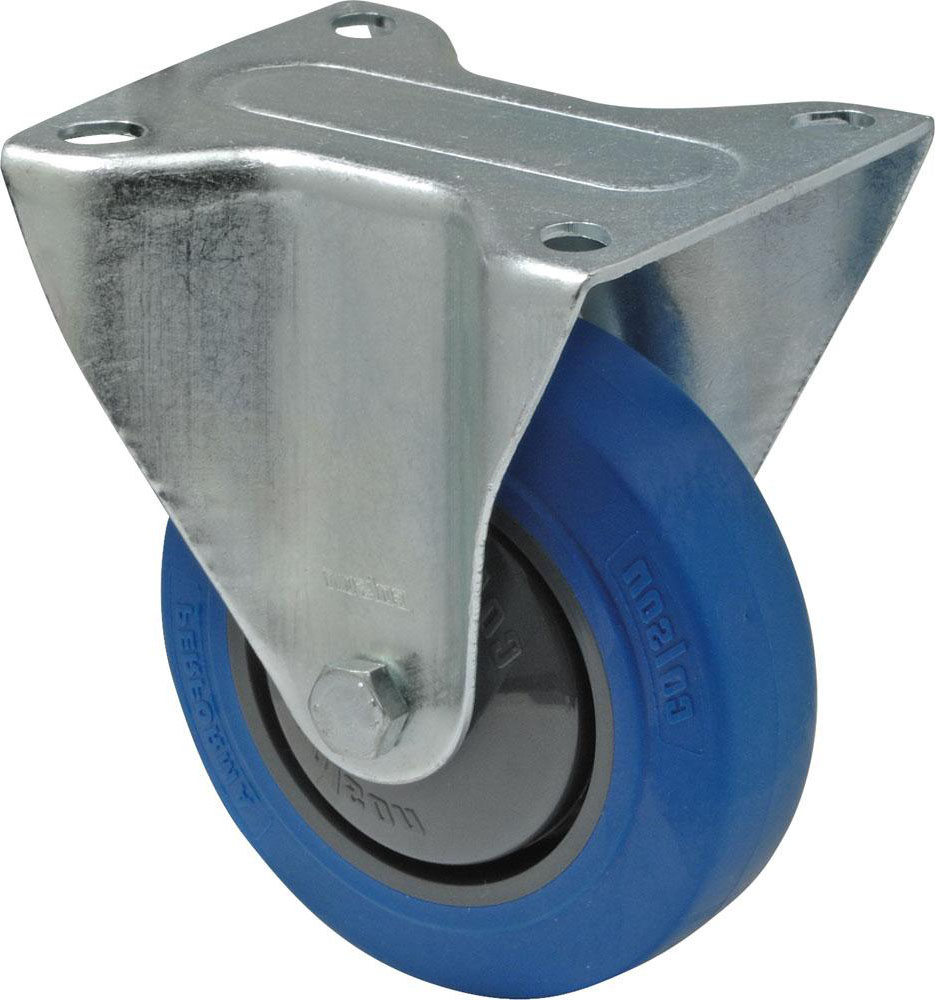

Fixed castor
Technical Specifications
- Load Capacity (kg)
- 150 kg
- Diameter (mm)
- 100 mm
- Height (mm)
- 128 mm
- Weight (g)
- 0.7 kg
- Topplate Bolt Diameter
- 9.6 mm
- Topplate (mm)
- 105 x 85 mm
- Topplate Bolt Distance (mm)
- 80 x 60 mm
- Axle Diameter
- 8 mm
- Hub length
- 42 mm
- Wheel Width
- 32 mm
- Offset
- 38 mm
- Brake Swivel Radius
- 128 mm
Rigid fork of zinc-coated sheet steel
- Dark grey polypropylene wheel with blue elastic Performa tyre
- 65° Shore A
- With one sealed deep groove ball bearing
