Product number:
FPPN 1251 1000

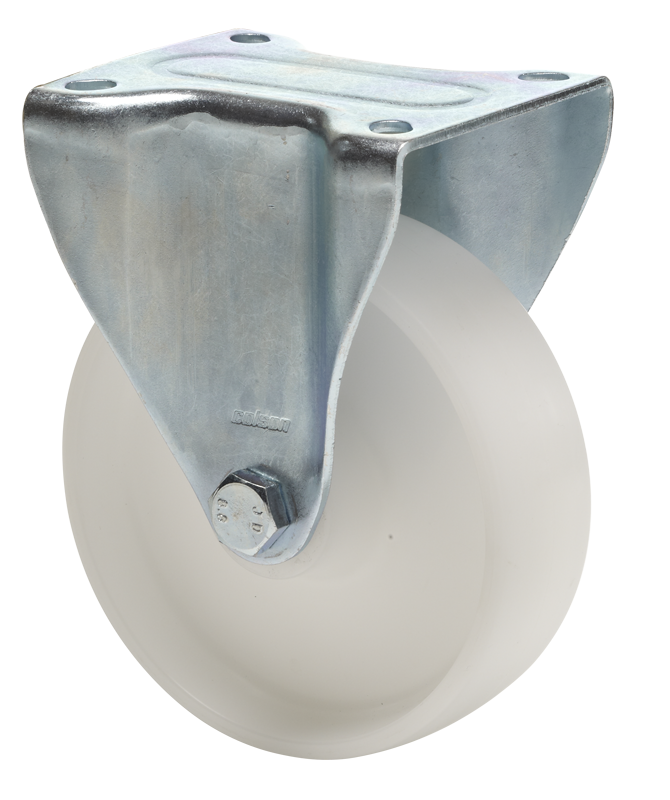

Fixed castor
Technical Specifications
- Load Capacity (kg)
- 200 kg
- Diameter (mm)
- 125 mm
- Height (mm)
- 156 mm
- Weight (g)
- 0.7 kg
- Topplate Bolt Diameter
- 9.6 mm
- Topplate (mm)
- 105 x 85 mm
- Topplate Bolt Distance (mm)
- 80 x 60 mm
- Axle Diameter
- 15 mm
- Hub length
- 45 mm
- Wheel Width
- 40 mm
- Offset
- 41 mm
- Brake Swivel Radius
- 138 mm
Rigid fork of zinc-coated sheet steel
- Polyamide wheel
- With plain bearing
