Product number:
FPPB 2003 2000

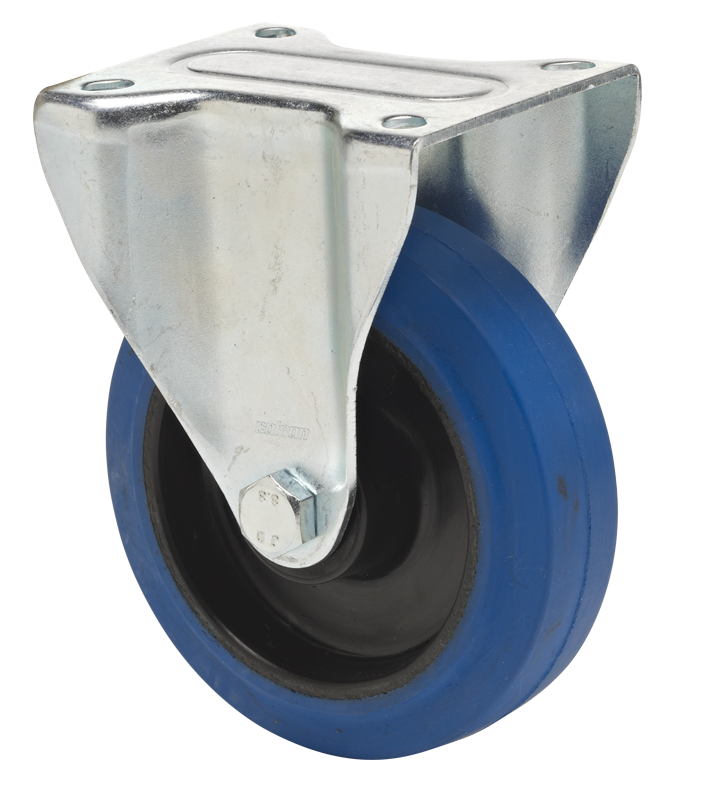

Fixed castor
Technical Specifications
- Load Capacity (kg)
- 220 kg
- Diameter (mm)
- 200 mm
- Height (mm)
- 235 mm
- Weight (g)
- 2.2 kg
- Topplate Bolt Diameter
- 11 mm
- Topplate (mm)
- 135 x 110 mm
- Topplate Bolt Distance (mm)
- 105 x 75,80 mm
- Axle Diameter
- 20 mm
- Hub length
- 60 mm
- Wheel Width
- 50 mm
- Brake Swivel Radius
- 178 mm
Rigid fork of zinc-coated sheet steel
- Polyamide wheel with blue rubber tyre
- 70° Shore A
- With roller bearing
